Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Brand Name : Eltek

Model Number : CTO2xxxx.nnnn

Certification : CE.UL

Place of Origin : CN

MOQ : 5 sets

Price : 2530$ +

Payment Terms : L/C, T/T

Supply Ability : 1500 sets /month

Delivery Time : 8-10 weeks

Packaging Details : cartons

Brand : Eltek

Part No. : 300A 24V POWER system

Capacity : 300A/500A

Rectifeir : FlatpackS 24/1800he

Application : Telecom ,OTL

Input voltgae : 220Vac

Output voltage : 24Vdc

Controller : Smartpack S or other optional

Warranty : 12 months

Package : cartons

Contact Now

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

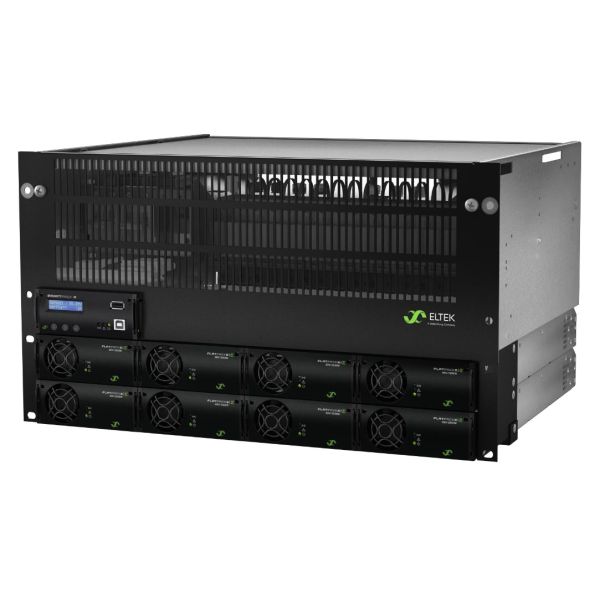

Eltek Integrated 24V Power System 5U/8U 300A/600A with Smartpack R controller and Flatpack2 48/1800HE module

The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability. T

he versatility of the Flatpack2 rectifier means that

it can be used in a wide variety of 48VDC and 24VDC applications across the globe

APPLICATIONS

TELECOM – MOBILE / WIRELESS

· Radio Base stations/ Cell Sites

· LTE / 4G / WiMAX

· Distributed Antenna Systems

· Microwave

· Broadband

TELECOM – FIXED

· Telephony servers / switches

· Fiber Optics / FTTx

· Microwave

· Cable

· Broadband

KEY FEATURES

l · COMPLETE SYSTEM

l · SMARTPACK R CONTROLLER

l · ADVANCED CONTROL AND

l MONITORING THROUGH ETHERNET PORT

l · USB TYPE A HOST FOR PLUG-IN

l DEVICES (EG. WIFI; FLASH DRIVES)

l · USB TYPE B FOR CONTROL

l · SUPER HIGH EFFICIENCY

l RECTIFIERS

l · HOT PLUGGABLE MODULES

l · 6X BATTERY BREAKER POSITIONS

l · LVBD

l · 18X LOAD MCB DISTRIBUTION

l · LVLD (OPTIONAL)

l · 5U TO 8U HEIGHT

l · GLOBAL APPROVALS


Parameters :

MODEL 24VDC 48VDC

Part number

(Configured Telecom power system)

CTO2xxxx.nnnn CTOxxxxx.nnnn

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

POWER MODULE
Flatpack2 rectifier 1) Flatpack2 24/1800 HE Flatpack2 48/2000 HE or SHE Flatpack2 48/3000 HE or SHE
INPUT DATA
Voltage (range) 85-300 VAC 85-300 VAC (HE module) 85-264 VAC (SHE module)
Frequency 45-66 Hz
Mains configuration Individual 2) / 1p230 VAC TN / 3p400 VAC TN / 1p230 VAC IT / 3p230 VAC IT
Connection Terminal blocks, 16 mm2 max
OUTPUT DATA
Voltage +24 VDC -48 VDC
Current (maximum) 600 A 600 A
BATTERY DISTRIBUTION
Number of battery breaker positions 6x 100 A
LVBD Default 300 A / 600 A Optional 150 A / 300 A / 500 A / 600 A
LOAD DISTRIBUTION
Number of load MCB positions 18x 18 mm or 9x 18 mm + 6x 27 mm
LVLD Optional 300 A / 600 A Optional 150 A / 300 A / 500 A / 600 A
Load breaker type DIN rail mounted, 18 mm and 27 mm wide (13 mm on request)
CONTROL AND MONITORING
Control and Monitoring unit 3) Smartpack R
Inputs 6x Digital inputs (for monitoring of external equipment)
Outputs 6x Alarm relays
OTHER SPECIFICATIONS
Isolation

3.0 kVAC – input to output

1.5 kVAC – input to earth

0.5 kVDC – output to earth

Operating temperature -40 to +60 °C [-40 to +140 °F]
Storage temperature -40 to +85 °C [-40 to +185 °F]
Dimensions (W x D x H) 4)

482 x 380 x H mm [19 x 14.9 x H inch] Height (H):

- 5U: 222 mm [8.8 inch]

- 6U: 267 mm [10.5 inch]

482 x 380 x H mm [19 x 14.9 x H inch] Height (H):

- 5U: 222 mm [8.8 inch]

- 6U: 267 mm [10.5 inch]

- 7U: 311 mm [12.3 inch]

- 8U: 356 mm [14 inch]

Weight (excluding modules) Approximately 5 kg [11 lbs]
DESIGN STANDARDS
Electrical safety

IEC/UL 60950-1

CSA 22.2

EMC

ETSI EN 300 386 v1.3.2

EN 61000-6-2 /-3

Environment

ETSI EN 300 019-2-1 (Class 1.2) /-2 (Class 2.3) /-3 (Class 3.2)

ETSI EN 300 132-2

Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised

1) See Flatpack2 rectifier datasheet for details

2) When system is configured without SPD device option

3) See Smartpack R controller datasheet for details

4) Recommended minimum cabinet depth is 400 mm [15.7 inch]




Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Related Products :

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier(Flatpack2 48/3000 SHE )Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier(Smartpack R controller )Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier( Smartpack S controlelr )

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifierIntegrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier

Integrated 24V Power System 5U/8U 300A/600A Smartpack R controller 48V 1800W rectifier


Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
